Part Numbers |
Description/Crimp Sizes/Crimp Style
|
Connector Manufacturer or Remarks |
|
|
Tool & Die: |
1606 |
STII Type |
Lucent ferrules & sleeves (not for use on STII+ connectors) |
 |
|
Die Only: |
2044 |
0.190” HEX / 0.105” RND / 0.90” RND 4.83 / 2.67 / 2.3 mm |
|
|
Tool & Die: |
1614 |
SMA / SMB / FC / BICONIC Fiber |
SMA / SMB / FC BICONIC / SC / ST |
|
|
Die Only: |

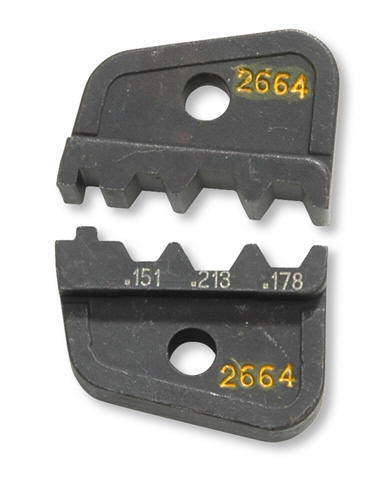

2664 |
0.213” / 0.178” / 0.151” HEX 5.41 / 4.52 / 3.83 mm |
|
|
Tool & Die: |
1668 |
SC & ST |
3M, Suncall, Fiber Source |
 |
|
Die Only: |
2668 |
0.120” / 0.137” / 0.190” RND
3.05 / 3.48 / 4.83 mm |
|
|
Tool & Die: |
8017 |
SMA, SMB, SFR, ST, SC Type |
Universal for sleeves and ferrules, SC, FC, SMA |
 |
|
Die Only: |
2652 |
0.128”/0.151”/0.215”/0.197”/ 0.178” HEX |
|
|
Tool & Die: |
8018 |
SMA/FC Type |
Crimps ferrules and sleeves only, SMA, FC |
 |
|
Die Only:
|
2043
|
0.215” / 0.178” / 0.151” HEX
(5.46 / 4.52 / 3.83 mm) |
|
|
Tool & Die: |
8019 |
SRF and SMF Type |
Crimps ferrules and sleeves AMP (Tyco) |
 |
|
Die Only:
|

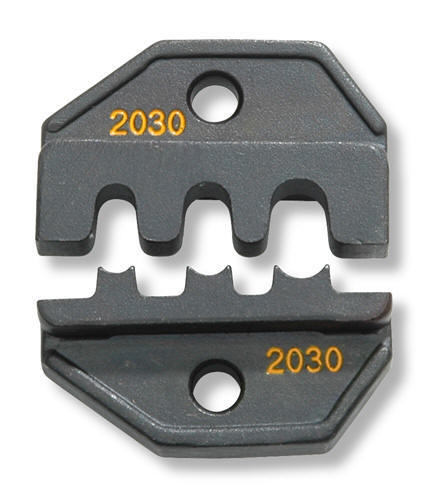

2030
|
0.190” / 0.160” / 0.132” RND
(4.83 / 4.06 / 3.35 mm) |
|
|
Tool & Die: |
8020 |
Lucent Technologies ST II Type |
Crimps ferrules and sleeves Lucent ST II |
 |
|
Die Only: |
2654 |
0.190” HEX / 0.105” RND / 0.090” RND (4.83 / 2.67 / 2.3 mm) |
|
|
Tool & Die: |
8037 |
3M SC / FC-3 |
Connectors with round crimp 3M SC / FC Type Fiber |
 |
|
Die Only: |
2669 |
0.120” RND / 0.137” RND / .190” RND (3.05 / 3.48 / 4.83 mm) |
|
|
Tool & Die: |
8039 |
FC / SC / ST / LC / SMA / MT-RJ |
Crimps 3M. SC / ST & Lucent / Krone LC, SMA, FC, MT-RJ, (LC
RND dimension proprietary) |
 |
|
Die Only: |
2685 |
0.151” / 0.178” HEX; LC RND / 0.190” RND |
|
|
Tool & Die: |
8050 |
AMP SC 2.0 / 2.5 / 3.0 mm |
Connectors with round crimp
AMP SC |
 |
|
Die Only: |
2695 |
.110 / .125 / .140 / .191 RND |
|
|
Tool Frame Only |
1600 |
|
Frame only |
 |
|
Tool Frame Only |
8000 |
|
Frame only |
 |
